[Quino base 8-phase two-time timer KTM-AMTM11](https://www.automation24.ir/product-3670/%D8%AA%D8% A7%DB%8C%D9%85%D8%B1-%D8%AF%D9%88-%D8%B2%D9%8 5%D8%A7%D9%86%D9%87-8-%D9%BE%D8%A7%DB%8C%D9%8 7-%DA%A9%D9%88%D8%A6%DB%8C%D9%86%D9%88-ktmamtm11)

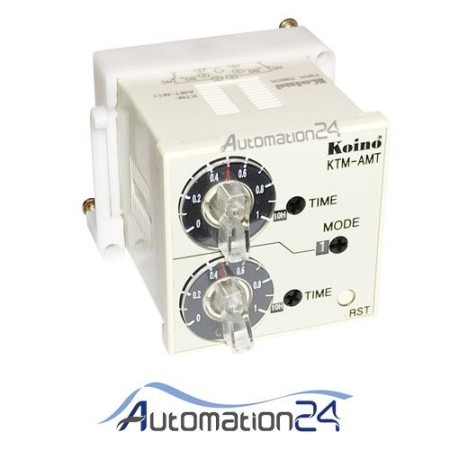

The Quino KTM-AMTM11 8-pin dual-time timer provides a wide range of time ranges from 0.1 seconds to 10 hours. Multi-voltage input and 6 different modes of each output function and very economical price have turned this timer into one of the most practical timers in the world.
## The main features of the two-time 8-pin Quino KTM-AMTM11 timer:
1. It has 2 outputs of 5 amps
2. Multivolt, multifunction and multirange
3. Wide range of input voltage
4. It has 6 different output modes
5. Multi-time range has 16 types of time range to set the time from 0.1 seconds to 10 hours
6. Easy setting of time, time range and output mode
7. Easy checking of the status of outputs by LED display
8. One of the best-selling analog multi-range timers
### Timer:
A timer is a control part that receives an input signal and provides an output signal after a delay (which is predetermined). Timers are used in various processes in machines and production lines.
A timer is a special type of clock that is used to measure different periods of time. In terms of functionality, timers can be divided into two categories. The first category of timers are those whose time units count starts from zero and goes to a larger number, which is called a stopwatch. The second category is those that count towards zero from a specific point in time.
**Click here to view Quino products.**
The function of the timer is such that after connecting the supply voltage, the device can connect and disconnect the output with certain time delays or even immediately. Nowadays, due to the importance of saving and optimizing energy consumption, the use of timers has become doubly important.
If we want to define this device from an industrial point of view, timers or time relays are one of the commanding devices of automatic control circuits, which, like control relays, are responsible for controlling the circuit for a certain period of time, with the difference that control relays monitor electrical quantities, but time relays, or timers, are responsible for timing and establishing precedence and delay. Another difference between time relays or control relays is that control relays have continuous graphs, but timers have discrete graphs.
Knowing and using timers properly can be very important in industrial processes. If you choose instead of a timer, in addition to the implementation of circuits, the assembly speed of the board increases, parts and cost are reduced and the circuit becomes simple and safe. For example, in the design of the star-delta board, previously the delay timer was used in the normal connection along with a few auxiliary contacts and a relatively complex circuit. But nowadays b
