A cooling tower is a water-cooling device that cools incoming water through heat transfer between water and air. The greater the contact time and surface area between water and air, the more efficient the heat transfer, and more heat is transferred from the water to the air. The key to achieving the maximum contact surface is to use surfaces called cooling tower packing inside the water cooler (cooling water). Simply put, cooling tower packing refers to the filling surfaces inside the tower that increase the contact area between water and air to achieve the greatest temperature drop in the water. Cooling tower fillers, also known as cooling tower filling, cooling tower wood wool, cooling tower packing media, cooling water filler media, and honeycomb packing of the cooling tower, are media located in the lower or middle section of the industrial cooling tower. Of course, cooling tower parts used for water cooling vary and are not limited to packing; fans, motors, droplet separators, louvers, etc., also assist in this process.
Cooling tower fillers are manufactured from plain PVC or PP sheets by specialized machinery. Some cooling tower packings are made from CPVC, resistant to high temperatures. They are hot-pressed in specific molds and produced in various designs to be used in different cooling towers, especially industrial cooling towers.
One of the most commonly used types of fillers is PVC packing, valued by cooling tower consumers for both price and application. Below are some features of PVC cooling tower packing: • The most commonly used material • Fire classification: M2 with an oxygen index of 42% • Operating temperature: maximum 65 degrees Celsius • Colors: black, green, blue, transparent, or others
Polypropylene, abbreviated PP, is used for manufacturing cooling tower packing with high temperature tolerance. PP packings are used in specific applications considering the characteristics of raw materials, hot water resistance, and acid washing capability. Usually, net splash and grid splash packings are made from this material. Below are some features of PP cooling tower packing: • Material resistant to high heat • Operating temperature: maximum 90 degrees Celsius • Colors: black, green, blue, transparent, or others
When the client agrees to pay a higher cost, this type of packing can be used for fillers that need to withstand temperatures above 100 degrees Celsius. Some features of CPVC cooling tower packing are: • Advanced PVC material • Heat-resistant material • Oxygen index of 42% • Operating temperature: maximum 100 degrees Celsius • Colors: black, blue, green, transparent, or others

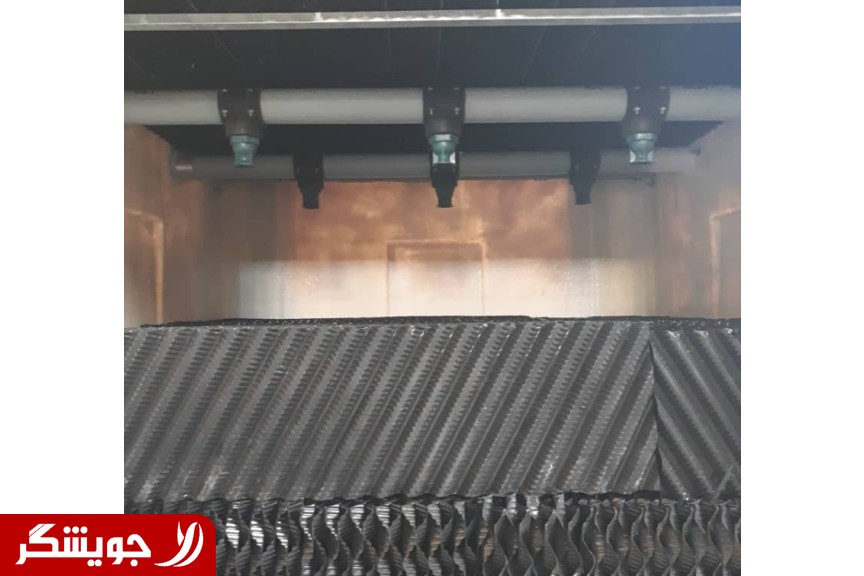

Cooling tower packing can be divided into two types: cross corrugated fillers and vertical fillers. • As mentioned above, the method for filling the cooling tower is to increase the contact surface between airflow and water flow for the longest possible time. By arranging the packing inside the cooling tower, water is allowed to form thin flowing sheets to expose as much water surface as possible to counter flow. In counter flow cooling towers, the most heat exchange occurs; water is sprayed from the top onto honeycomb packings while axial fans draw air upwards through the tower, which encounters the descending water and removes the excess heat.
To purchase cooling tower packing, you should first inquire about prices from several sources to check both price and product specifications. Considering the types of cooling tower packing mentioned above, each material and shape of packing media has its own price. Generally, the price of cooling tower packing is determined based on raw materials, production quality, and sheet thickness. To get the price of cooling tower packing, contact the sales expert at Azin Tahvie //.......>>
