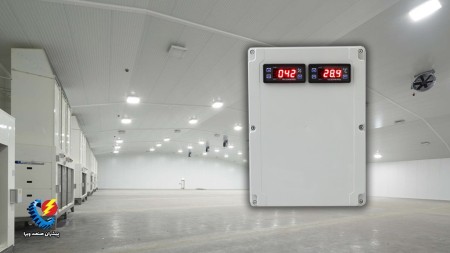

Monitoring and recording the temperature of the refrigerator and freezer

Monitoring and recording the temperature of the refrigerator and freezer

Data logger and monitoring the temperature and humidity of the warehouse

The need to use a cooling system to store warehouses and storage centers is not hidden from anyone If it does not work properly, how can it be defective?

For this category, we can use a temperature stability system that is able to store temperature information of the desired location throughout the year. This controller is currently designed by Pishran Company. And has reached mass production.

The capabilities of the data logger system - controller and monitoring of cold storage temperature are as follows:

1- Display temperature

2- Display Humidity

3- Ability to record temperature and humidity information for a long time (10 years) without the need for a computer

4- Ability to draw graphs and curves of temperature and humidity changes

5- Ability to send information in Excel file form in output

6- Ability to work online and offline

7- Ability to send alerts on mobile in case of temperature or humidity

8 ) Ability to make phone calls if the temperature rises above the allowable limit with 5 different users

9. Ability to output independent and automatic commands without human intervention for the refrigeration system

10. Ability to receive information on mobile

11. Set time interval to record information

12. Connect to a computer by protocols Standard

13. Ability to receive emergency output

14. Send temperature or humidity at the request of the user on mobile

15. Ability to increase the number of available sensors Need to change hardware

16. Communicate with the controller and monitor values ​​online within the organization

17. Communicate with the controller in the form of a web server from anywhere in the world

18. Email alert

19. Use 220V sirens for easy transfer of sirens anywhere inside or outside the warehouse

Data logger and temperature monitoring And humidity of warehouse and cold storage of fruits and citrus

Warnings and receivable errors

1. Warehouse power outage warning \ r2 n2) Warehouse compressor fuse warning

2. Warehouse generator operation warning

3. Warehouse temperature increase warning

4. Warehouse temperature decrease warning

5. Door open warning Warehouse

6. Ghai arrival warning Permitted to the warehouse

7. Warning of two-phase electricity of the warehouse compressor

8. Warning of disconnection of the thermal sensor inside the warehouse

9. Smoke and fire warning

10. Water leak warning

11. Warehouse local network outage warning

Notification methods

1 ) Send SMS in case of error for at least 5 people

2. Miss Call in case of error for at least 5 people

3. Activation of siren and flasher in place

4. Activation of guard siren

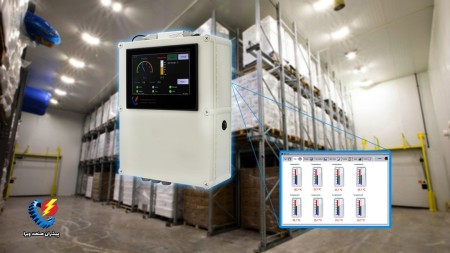

Data logger and monitoring of temperature and humidity

Hardware and equipment that can be installed src

1. Controller industrial plc

2. auxiliary plc controller

3. industrial wavecom modem

4. 7-inch industrial touch screen display

5 ) Temperature and humidity sensor integrated 1240 with Modbass protocol

6. Polycarbonate box with ip55

7 degree of protection) Modbass temperature sensors

4. Digital humidity sensors

5. Polycarbonate box with degree of protection ip55

Measurement accuracy and resolution \ r1 n1) Temperature measurement resolution 0.1 ° C

2. Humidity measurement resolution of 1%

Lata

1. in src tcp / ip model
