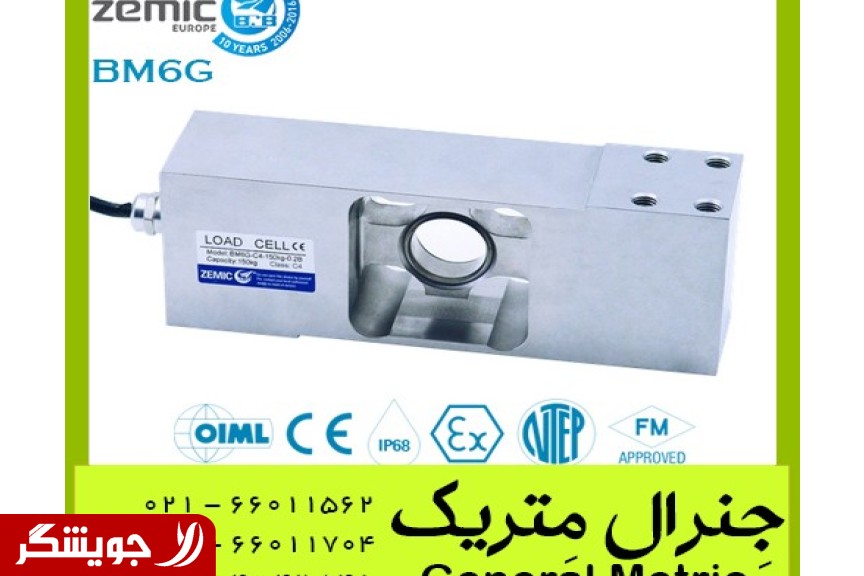

Buy ZEMIC load cell ZMIC model BM6G single point

Buy ZEMIC load cell ZMIC model BM6G single point

This high quality load cell has IP68 and IP69 degree of protection against high humidity, water pressure and dust and is therefore unique

Weight range of this load cell is: 10K, 20K, 100K, 150K, 200K, 300K, 400K, 500KG The weights shown indicate the construction of scales and baskets, with medium weight

Body material is made of stainless steel and has OIML R60 certification, which indicates the high quality of this product in accordance with European and American standards.

This load cell is single point and usually as a single load cell in In the middle of the structure, a basket or scale is installed. Otherwise, 4 load cells are used as a total and increasing the weight range (4X500K = 2TON). By parallelizing the load cells, the weights are added together. The high weight limit corresponds to the load cell output impedance to connect to The display is desired)

The maximum dimensions of the weighing structure without weight difference is 800X800 mm and the alignment of the chassis to achieve weight stability is of great importance b It is equipped with This sensor has ATEX or explosion-proof standard for use in high-risk locations, as well as C3 accuracy class

Due to the screws at the top and bottom of the load cell, two L-shaped chassis can be installed Load cell utilized

Has other standards: RoHS, FM, PCT, CE, NTEP

Can be used in most weighing cases, including making baskets and light scales with precision Top and dusty and rainy environments, store scales, fruit and vegetable scales and scales, airport scales and weighing airport luggage Labo scales, industrial uses etc.

Weighing the conveyor as Single or double loaders, production line controllers and various types of packing machines and bag filling materials

350 ohm output resistance The ratio of output voltage to supply voltage is 2mV / V

• It should be mentioned that in order to add a load cell cable and use it at a great distance from the display, you can use imported cables (4 strands and 6 strands with General Metric shield) and order when buying a load cell
