Nouri Interferometrometry: A definitive solution to the bedding and parallel surfaces with optical flat and exclusive light source

### Nouri Interferometrometric Foundations: Reference Standard for Assessing Topography Careful Levels

In the world of metrology and dimensional calibration, where accuracy is defined on the micron and nanometer scale, assessing the quality of smooth and smooth surfaces is a permanent challenge. Mehr Engineering Company has made this challenge an opportunity to display absolute accuracy by presenting a complete and integrated solution based on the physical principles of interferometric (optical interference). The Takfam light source, along with a set of optical filters and optical paralleles with precision grade, powerful, simple yet precise, at the same time for Flatness and Parallelism, provides calibration laboratories and industrial quality control units.

### Component Component Expression: From Sodium Light Source to Quartz Reference Optics

This set of instrumentation operates on a combination of a sustainable light source and precise engineered optics. The following is a thorough description of each component and technology behind it.

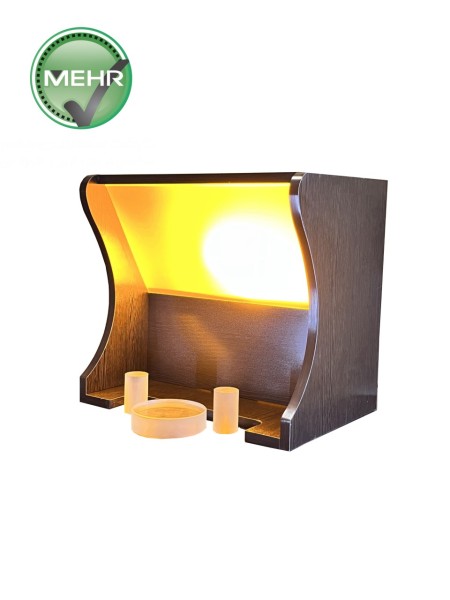

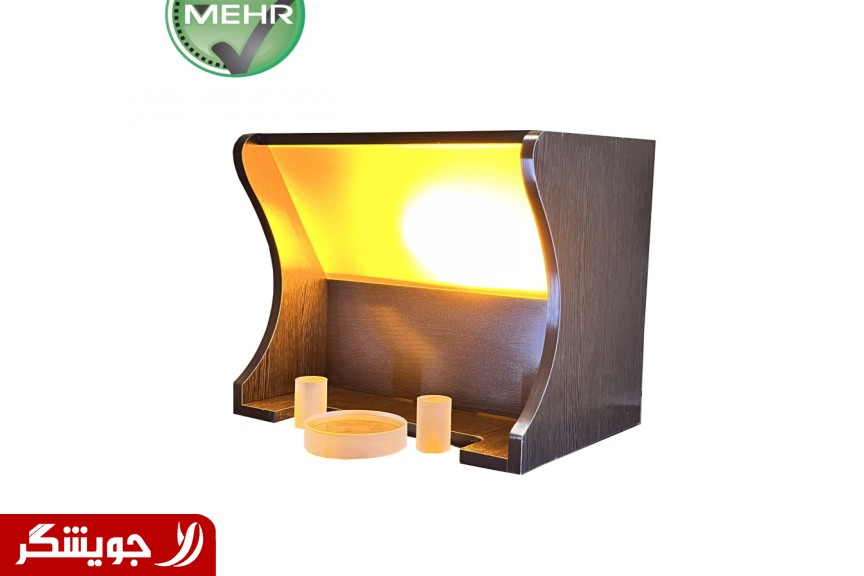

### 1. Monochromatic Light Source)

Takfam light source device is the heart of your interferometric measuring system. This device is specifically designed for light production with a single wavelength (monochromatic).

Light Production Technology: This device uses a 35 -watt low -sodium sodium vapor that produces a 575 nm wavelength . This wavelength is located in the yellow light spectrum and is known as an industrial standard in interferometrics due to the production of interference fringes with very high contrast and extraordinary resolution. The stability of the wavelength of light is the essential principle for repetition and accuracy of measurement.
Applied Design: The body of the machine with a dimension of 300 x 300 x 350 mm is made of quality industrial wood which, in addition to physical stability, has a dark and anti -reflective interior compartment. This clever design prevents the effect of environmental light on the measurement process and allows the operator to view interference with maximum resolution.

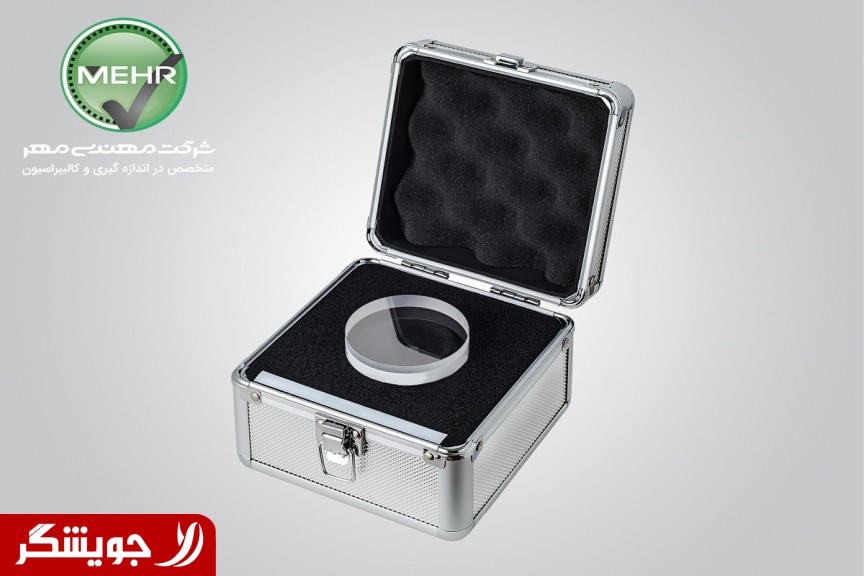

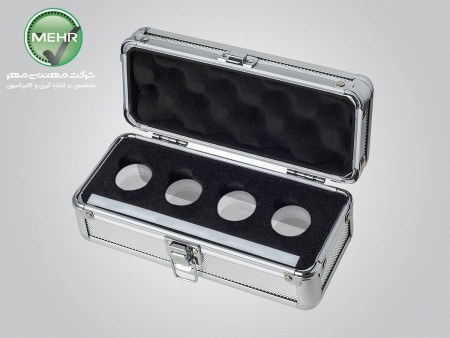

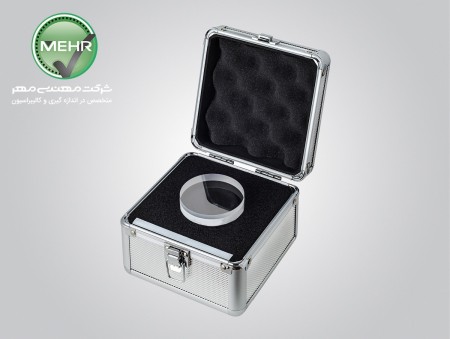

### 2. Optical Flats (Optical Flats) - Standard Reference

Optical Films are fused Quartz or high -quality borosilicate glass, one or two of which are extraordinary, flat and polished.

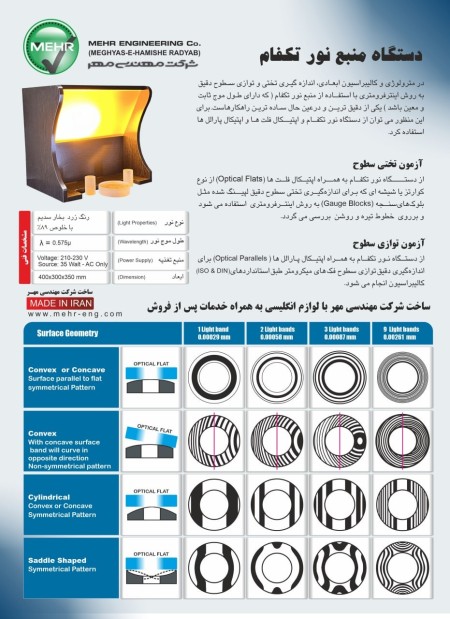

Functional Principles: When an optical plate is placed on the surface of the polished workpiece, a very thin, shaped air layer is created between the two surfaces. With the extensive light radiation, the reflection of the light from the underlying surface of the flat and the upper surface of the workpiece interferes and creates a pattern of bright and dark strips (interference strips). The shape, distance, and truth of these strips are an accurate image of the workpiece's surface deviation from the ideal bed.
Unique Quality and Precision: ** Optical Felt
