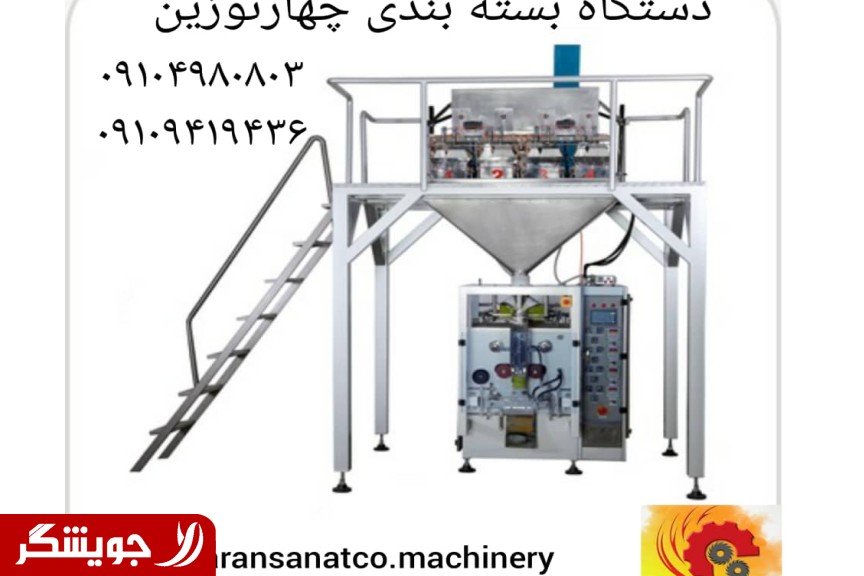

Four-weight packaging machine

Specifications of Chahartouzin machine: The four weighing machine with four load cells and vibration system in the trays of this machine and electropneumatic operation system can produce high production in packaging beans, fruit chips, fruit in the least possible time and with the least error. dry, potato chips, toffee, sugar, sugar, rice, dried fruit, and all kinds of granulated products. Having a separate electrical panel equipped with touch control and PLC is another advantage of this machine that the operator makes it easy to work with.
After transferring the product, the dual-purpose vibration system moves under the tank and carries out the operation of transferring the material for loading and weighing.
The high accuracy of this device regarding The loading of the product also applies, because by taking into account any type of material for packaging, special settings can be made, which is called calibration.
In the weighing section, there are four scales for weighing the product. which increases the speed of the four weighing packaging machine compared to similar machines. Because 4 scales are being weighed to load, therefore the packaging machine is constantly loaded and unloaded.
This machine has the ability to adjust the weight of each package as well as the speed of packaging by the operator. It also has a touch monitor with Farsi menu and desired languages (for export) and is equipped with a computer troubleshooting system. Also, the operation of this packaging machine is 100% automatic. The dimensions and size of the packages can be changed by changing a piece called the tube and collar. This device has the ability to adjust the weight of each package as well as the speed of packaging by the operator. It also has a touch monitor with Farsi menu and desired languages (for export) and is equipped with a computer troubleshooting system. Also, the operation of this packaging machine is 100% automatic. The dimensions and size of packages can be changed by changing a part called tube and collar
Specifications of the packaging machine
• Material of the body of the machine: iron with an impact-resistant furnace powder color
• Material of the parts in contact with Food: 304 stainless steel
• Power consumption of the machine: two kilowatts, single or three phase depending on your order
• Dimensions of the packaging machine: length 210, width 200, height 315 cm\r Machine weight: about 1500 kilos. Packing speed: 15 to 25 packages per minute. Package weight: 20 to 2000 grams.
