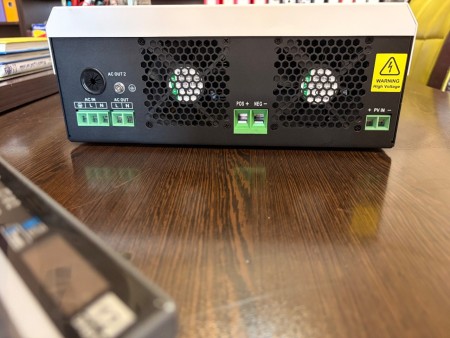

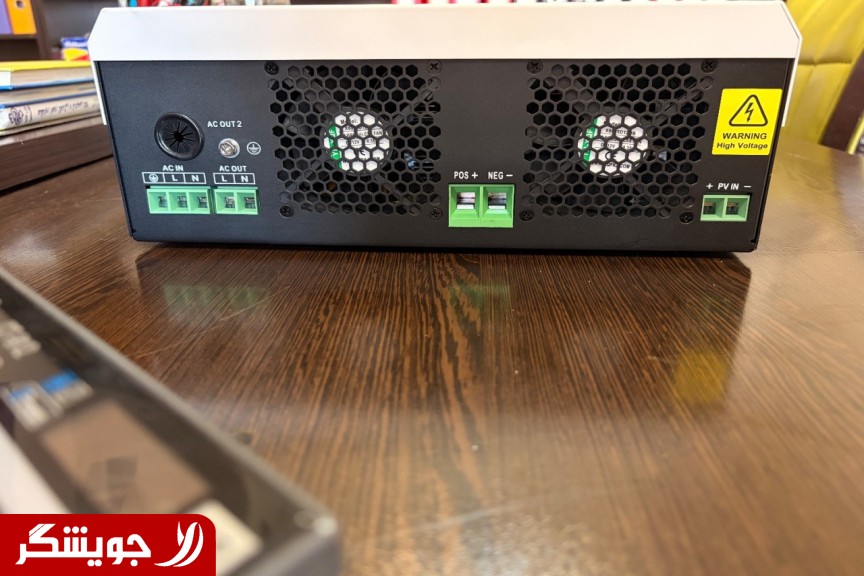

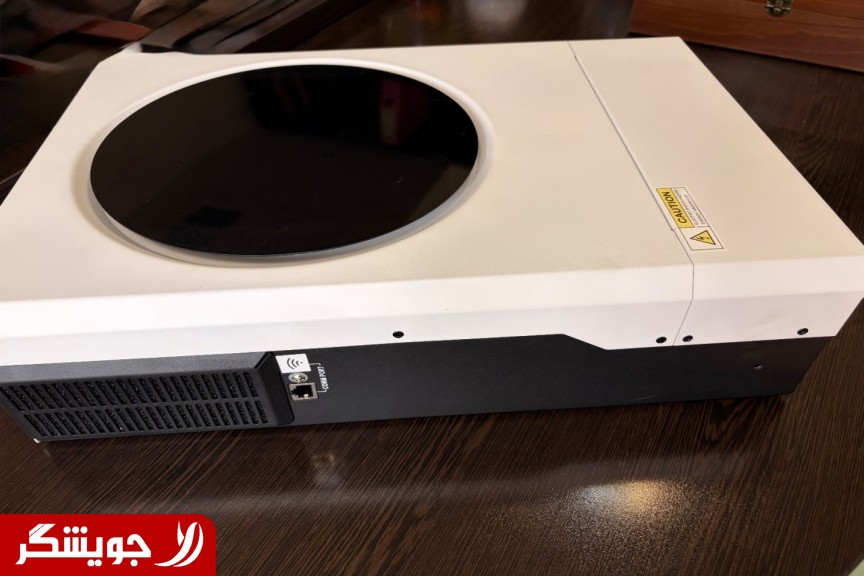

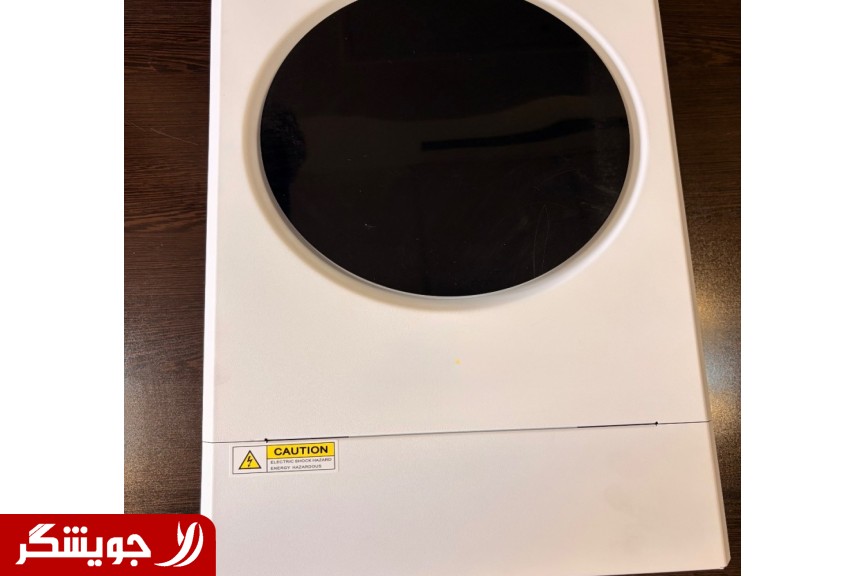

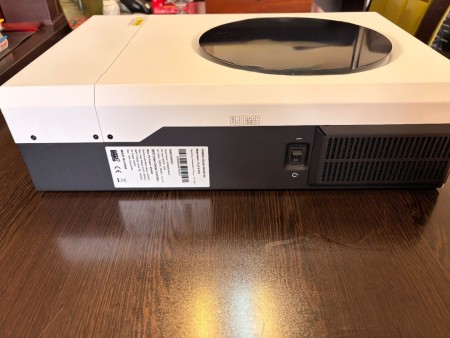

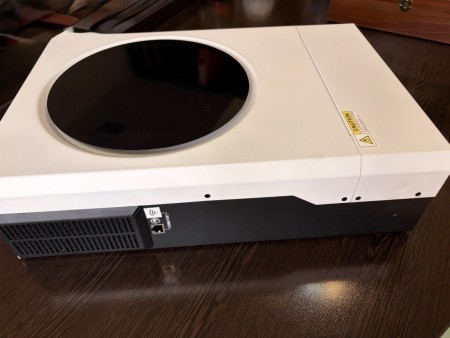

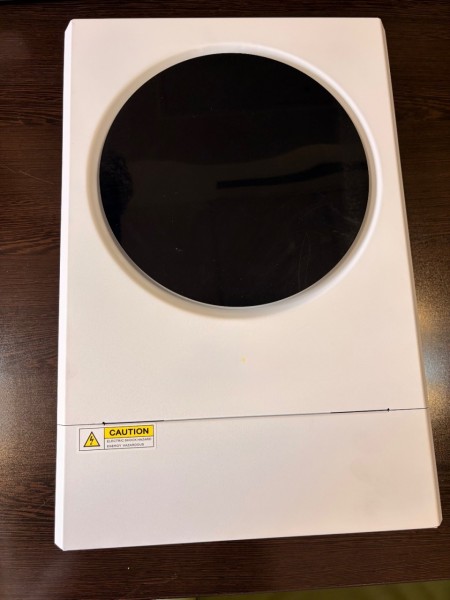

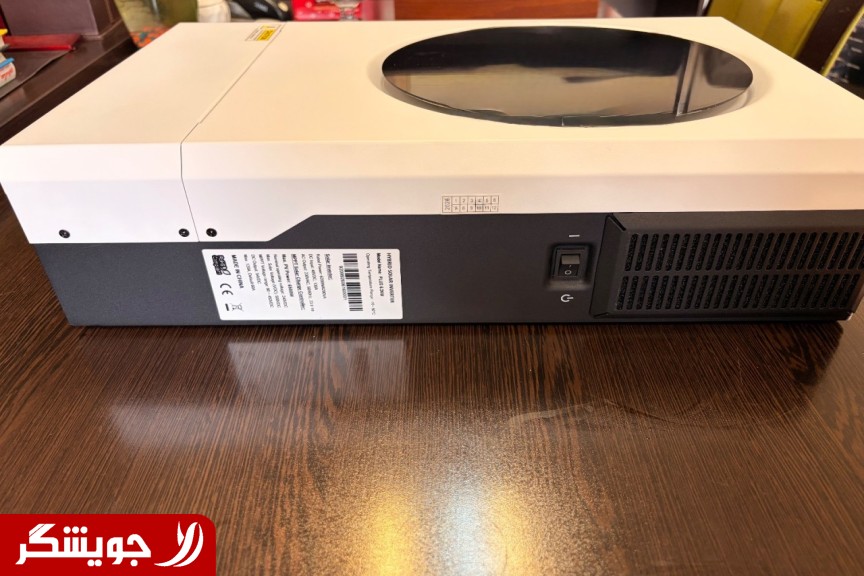

PRO PLUS 6.2KW | 48V Solar Hybrid Inverter

Purchase the PRO PLUS 6.2KW Solar Hybrid Inverter The PRO PLUS 6.2KW /48V Solar Hybrid Inverter is a suitable solution for energy management and supply in Hybrid solar systems, Off-Grid systems, and backup power systems. This inverter allows the use and management of energy from the grid, solar panels, and batteries, and with its built-in MPPT solar charger, it is suitable for a wide range of solar energy and emergency power projects.

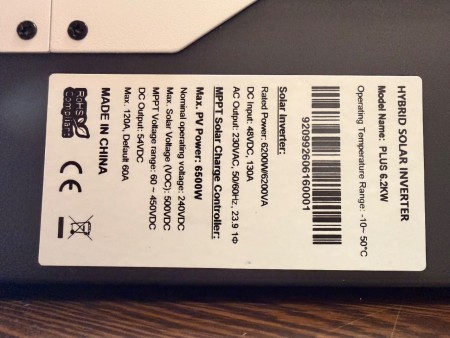

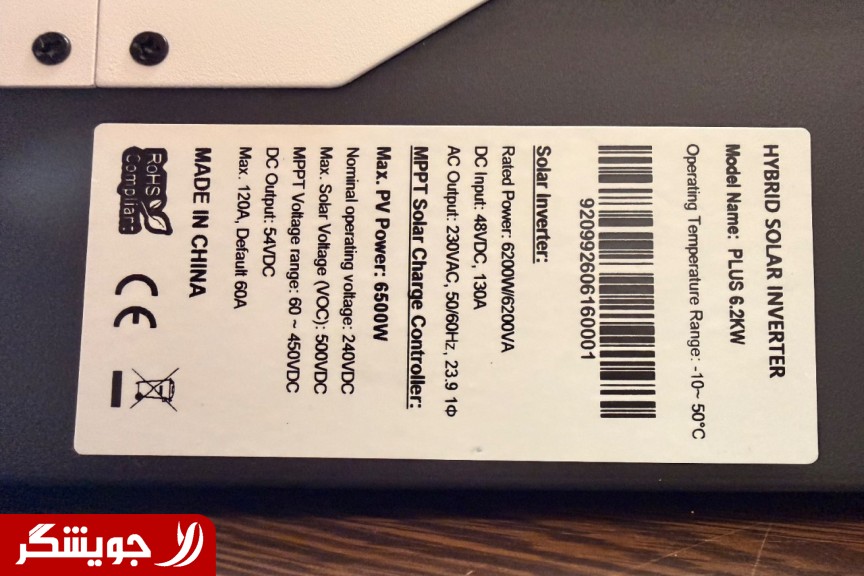

Technical Specifications of the 6.2 kW Inverter

• Rated Power: 6200W/6.2 KW
• Battery System: 48VDC
• Maximum Solar Array Power: 6500W
• MPPT Operating Range: 60-450VDC
• Maximum PV Open Circuit Voltage: 500VDC
• Maximum Solar Panel Input Current: 27A
• Built-in MPPT Solar Charger
• Output Voltage: 230VAC
• Output Waveform: Pure Sine Wave
• Frequency: 50/60Hz Auto Sensing
• Maximum Efficiency: 98%
• Peak Efficiency in PV to Inverter Conversion: 97%
• Peak Efficiency in Battery to Inverter Conversion: 94%
• Transfer Time: 10ms for computers / 20ms for household appliances
• Dual Output Capability for Load Management
• BMS Communication Capability
• Battery Charge Status Display (SOC)
• AC/Solar Consumption Priority Selection via LCD
• Can Operate Without Battery
• Protection Against Overload and Short Circuit
• LCD Display and Function Keys
• Communication Interfaces: USB/RS232/RS485
• Optional WiFi Capability
• Protection Rating: IP20
• Operating Temperature: 0 to 55°C
• Allowed Humidity: 5 to 95% RH non-condensing

The above specifications are according to the product datasheet.

What is the application of a hybrid inverter? The PRO PLUS 6.2KW inverter is suitable for projects requiring the combination of multiple energy sources, including:

• Hybrid Solar Systems
• Off-Grid Solar Systems
• Emergency and Backup Power for Villas and Gardens
• Residential Buildings
• Commercial and Retail Units
• Offices and Administrative Complexes
• Workshops and Light Industrial Units
• Solar Energy Projects
• Energy Storage Systems

In solar system design, the PV panel can be connected to the inverter's solar input, and the battery and grid power can be used according to the system structure.

Advantages of Using MPPT The built-in MPPT allows the inverter to track the optimal operating point for solar power generation. The PV input of this model supports a maximum current of 27A, an MPPT range of 60 to 450VDC, and a maximum open circuit voltage of 500VDC.

Pure Sine Wave Output The inverter provides a pure sine wave output, making it suitable for applications where AC waveform quality is important.

48 Volt Battery System The 6.2KW model uses a 48VDC battery system. This structure offers advantages in DC current design for higher power energy storage systems compared to lower voltage systems. Battery specifications for 48V are listed in the product datasheet.

Operation Without Battery An important feature of this model is the capability to work without a battery as stated in the datasheet. Therefore, in some system designs, the inverter can be used without installing a battery. Exact conditions for battery-less operation should be reviewed based on system structure and device settings.

BMS Communication and Monitoring The inverter has a BMS communication port and interfaces RS485, USB, RS232 for communication and control. Wi-Fi capability is also optionally available.

Why a Hybrid Inverter? In a solar energy system, the inverter does not only convert DC to AC. In hybrid models, energy source management is also important. This model allows setting priority between AC and solar use via LCD and can be used in Hybrid and Backup system designs.

Suitable Projects If you are looking to purchase a 6 kW solar inverter, 6.2 kW inverter, 48V inverter, hybrid inverter, or solar inverter with Solar Inverter Hybrid, this model can be one of the options to consider.

This product is suitable for projects such as:

• Solar Energy
• Backup Power
• Hybrid Systems
• Off-Grid Systems
• Villas and Gardens
• Residential Buildings
• Commercial Units
• Workshops
• Storage Projects

Purchase and Price Inquiry for 6.2KW Inverter To receive the current price of the 6.2KW hybrid inverter, model selection consultation, technical datasheet, and stock inquiry, please contact the sales experts. If consumer information, load power, solar panel specifications, and desired battery capacity are provided, technical evaluation and suitable capacity selection for the project can be performed.
