MFRC522 module boot board

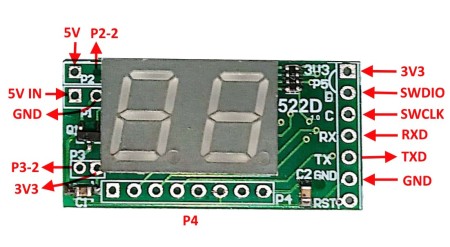

This board is installed on the module and through it you can communicate with the module and control its operation.
The main core of the board is a 32-bit STM32F030K6T6 processor. and with the help of the board's seven two-digit segment, it is possible to display the desired data or the process to the user.
The connection of the board with the module is through the SPI interface. The independent educational board is used to teach STM32F030 microcontrollers or even directly used in practical and industrial or student projects. Module features: 3.3 input voltage. or 5V
- It has two open-collector outputs to control relays, buzzers, etc.
- It has seven two-digit segments
- Small dimensions (35x17.5mm)
- Free code sample
- Availability of UART and SPI serial ports and most input/output (I/O) pins as well as SWD port for debugging and micro programming
- Has 3.3V regulator\ r\n
Download the schematic map of the RFID RC522 Driver
Download the free code sample (STM32CubeID E)
Download the sample code, and buy the board through the Bisoo site:
