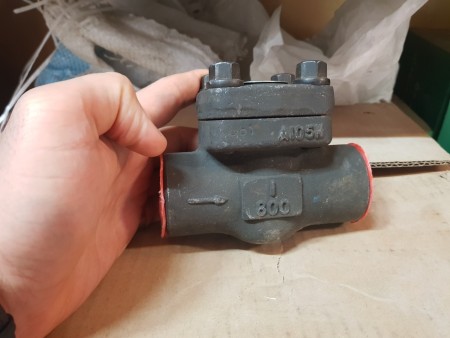

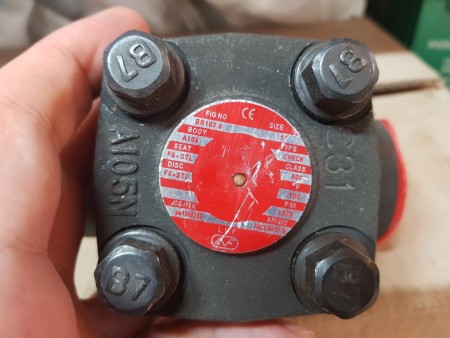

The price of one-way steel valve, size 1, class 800

Selling automatic steel valve class 800 carbon steel silent weld CHECK VALVE CS A105 SW #800
### One-way valve
### Size one inch "1
### A105N steel body material
###
Please contact us to buy, inquire about the price and receive free advice.

### What is CHECK VALVE?
One-way automatic valve or Check Valve is a type of valve that prevents reverse or reverse flow of liquids in piping. This type of valve opens automatically to allow the flow of liquid to move in a certain direction and closes when it tries to move in the opposite direction.
The main features of the automatic one-way valve are:
1. Automatic opening: This valve opens automatically while the liquid flow moves in a certain direction.
2. Automatic shut-off: If reverse flow is attempted, the automatic valve closes and prevents fluid backflow.
3. Simple structure: These valves usually consist of a simple structure that allows for reliable operation in different substrates.
4. Wide applications: They are used in piping systems and various equipment, including oil and gas, chemical, water and sewage industries, heating and air conditioning systems.
5. Equipment Protection: By preventing fluid backflow and preventing damage to equipment and systems, these valves help protect equipment.
6. Different types: These valves are designed in different types such as automatic disk valve, automatic ball valve, etc., each with its own characteristics.
### What are the types of check valve?
Among the types of one-way automatic valves, the following can be mentioned:
1. Automatic disc valve (Swing Check Valve): In this type of valve, the disc moves as a swing and allows the liquid flow to move in one direction. If the current tries to reverse, the disc will automatically close.
2. Automatic ball valve (Ball Check Valve): This type of valve has a ball as a disc that moves in a hole through which the liquid flow passes. When reverse flow occurs, the ball moves upward and blocks the flow.
3. Automatic valve inside the pipe (Inline Check Valve): This type of valve is located inside the pipe and usually has a cylindrical shape. When the flow moves in the desired direction, the gate opens and lets the flow through; But in case of reverse flow, the gate is closed.
Automatic one-way valves are used as a vital element in the protection of piping systems and various equipment. These connections depend on the automaticity of their operation and do not require manual adjustment.
### Types of work classes of one-way CHECK VALVE milkers are:
Working classes or pressure classes for automatic one-way valves (Check Valves) are determined as an indicator of their pressure tolerance and efficiency in different conditions. These classes represent the maximum pressure that an automatic valve can safely withstand. Some common work classes for automatic one-way valves are:
1. **
