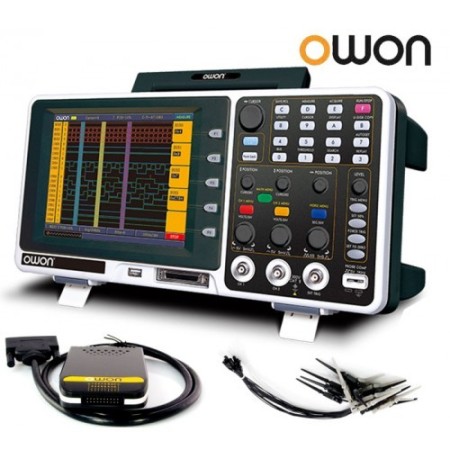

Oscilloscope with 2-channel logic analyzer model MSO-7062TD made by OWON Hong Kong company
Two-channel logic analyzer oscilloscope model MSO7062TD made by OWON or (Two-channel digital oscilloscope). Logic circuits are tested by logic analyzer. Logic analyzer has the ability to track and display the timing of logic signals. This device is used in analyzing and checking embedded processors and systems, checking the connection between digital signals at the same time, designing and troubleshooting circuit performance and testing mixed-signal circuits. From the horizontal SEC/DIV handle of the MSO-7062TD digital oscilloscope to change Use a time base and see the results information changes.Turn this knob to change the time base and you will see these changes under SEC/DIV under Horizontal Time Base.Use the scope's HORIZONTAL POSITION knob to adjust the horizontal position of the signal in the waveform window. . This knob is used to control the triggering of the shift signal or other special programs. If either shift is used, the horizontal movement of the waveform can be seen by turning this knob. With the HORIZ MENU button, you can work with the settings window and the general window.
Technical Specifications
60 MHz 2-channel digital oscilloscope
Oscilloscope with memory
- 2 props
- Sampling speed 1GS/s
- 16-channel 100 MHz logic analyzer module with 2GS/s sampling speed
- 8 inch color screen
- The ability to connect to a computer with a USB port
- 2 MB memory
- 20 types of automatic measurement
- FFT function, USB Flash
