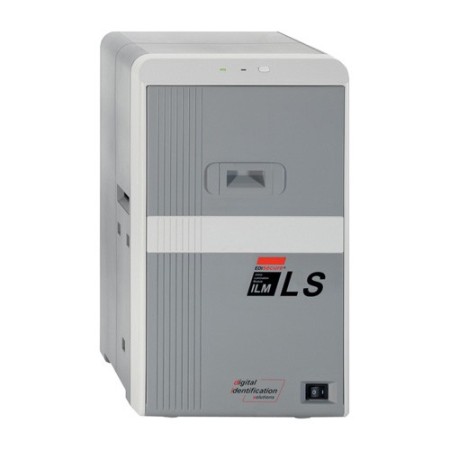

ILM-LS Laminate device

Name: ILM-LS Laminate device
Brand: Rayan System
Availability: OutOfStock
Rating: 5.0 (1 reviews)

Rayan System
View: 1441
updated: 3 Hour ago
Expire: Tuesday 28 Sep 2027
Last Login : 39 Minutes ago
Rate: ( Rate count: 1 ) Add a Comment

Contact with the company

Gold
3 Year

Product Detail
Company Info
Other company products
Comments

Increase the security and durability of the card with the Matica Edisecure ILM-LS: Technical Analysis and Selection Guide

In the process of issuing ID cards, personnel and government, the post -printing stage plays a vital role in determining the durability and security of the card. The Matic Edisecure ILM-LS is designed to add a powerful protective layer to printed cards as a specialized and high-speed solution. With perfect integration with XID Series printers, the device automatically performs one -way laminate process, fast, and highest quality, and produces abrasive -resistant cards.

### Technology Explanation: Mechanism of International thermal lamination

The technology used in the ILM-LS module is a precise and engineered process based on three key principles: thermal lamination, intra-line design and variety of consumables.

Thermal Laminite:
The heart of this process is controlled heat and pressure. After the card is removed from the printing unit and enters the ILM-LS module, a laminate film movie is opened from the roll and placed on the card surface. Then, the card and the film pass through the thermal rollers. At this point, the precise and adjustable temperature (between 90 and 180 degrees Celsius) activates the special adhesive behind the laminate film and the roller pressure attaches it to the card surface.
Importance of adjustable temperature: Temperature adjustable is a critical technical feature. Different card makers (such as PVC, PET, PC) and a variety of laminate films require different temperatures for optimal adhesion. This capability ensures that the laminate process is performed at maximum quality without damaging the card or creating a bubble.

In-Line Integration:
The term "intra -line" means the physical and operational integration of the laminate module with the printer. The ILM-LS module is connected to printers such as MATICA XID8300 by a connecting plate. This connection creates a direct and automatic card transfer path. As such, the card is directly entered into the laminate module without the need for any hand interference and the protection process is applied to it. This complete automation eliminates human error, increases the overall speed of the issuance process, and prevents contamination or damage to the card level between two stages.

Types of Laminates (Laminates):
The technology of this device allows the use of two main categories of film, each of which has different applications:
1. Overlay: This type of film is a thin, transparent layer that covers the entire surface of the card from edge to edge. Its main purpose is to protect against superficial scratches, UV rays and general abrasion.
2. Patch Laminitis: ** This type of film is more thick but does not cover the entire level of the card. "Patch" are designed as patches of specific dimensions (slightly smaller than the card surface) to key areas such as magnetic strip (Magnetic S
