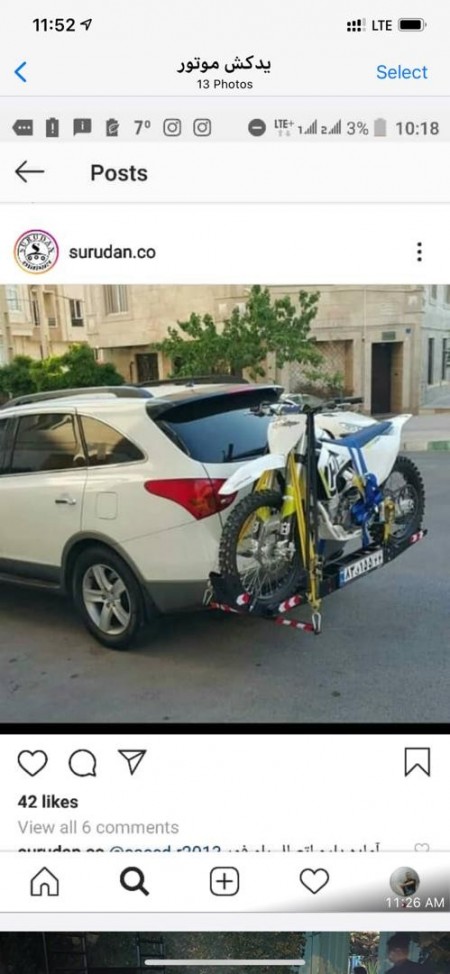

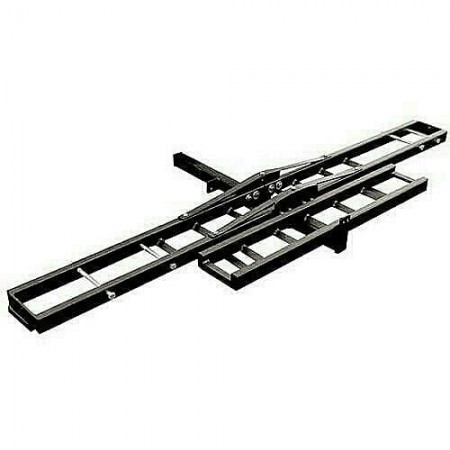

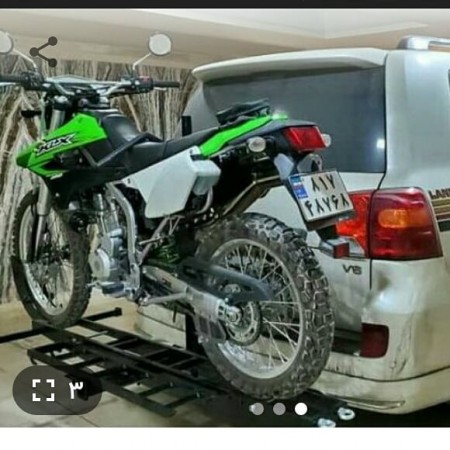

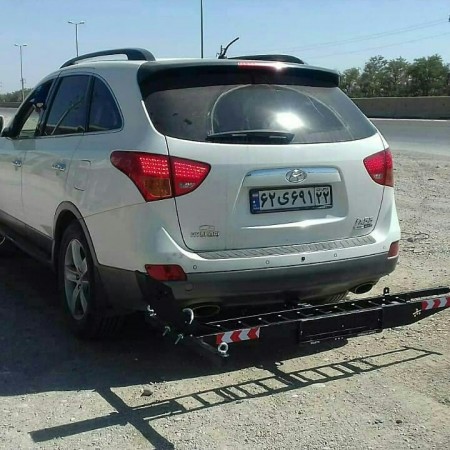

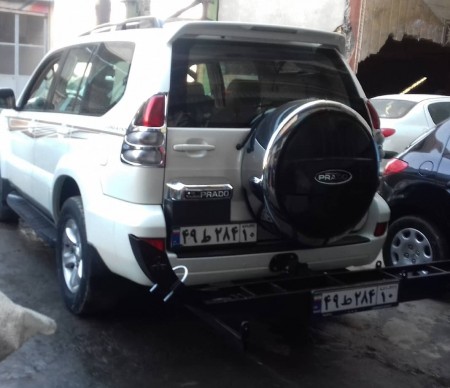

Motocross strap behind the car

Stream three-phase electric motor 7.5 horse, 5.5 kW, 1400 revolutions, China Stream cast iron base, Y series https://www.manamotor.com/stream-7-5hpx4p132s-4-y The country of manufacture is China Weight (grams) 67000 Working voltage 380/660 volts, three phases Power 5.5 kW - 7.5 horses The frame size of the motor body is Size 132 d=38mm Base and flange type B3 Has a base Dimensions 390x270x345 mm The diameter of the output shaft is 38 mm The length of the output shaft is 80 mm Key shaft connection 10mm Rated speed 1440RPM No load speed 1500RPM Number of poles 4 bridges (1400 turns) Rated torque 33.4N.m The maximum torque is about 2 to 2.2 times the nominal torque Motor current rated current 11.8 amps at 380 volts The motor lock current is 7 times the rated current Cast iron shell material Power factor COS Fi 0.83 85% efficiency Ins Class CLASS F Environmental conditions, working temperature from minus 15 to plus 40 degrees Celsius IP55 Shipping time 1 working day 12-month warranty

Stream single-phase electric motor with two clutch capacitors, 3 horses, 2.2 kW, 1400 revolutions, cast iron base\r\nProduct code STREAM-3HPX4P/112M-4-YC\r\nhttps://www.manamotor.com/stream-3hpx4p/ 112m-4-yc\r\nMade in China\r\nWeight (gram) 49000\r\nWorking voltage 220 V single phase\r\nPower 2.2 kW - 3 horses\r\nFrame size, motor body Size 112 | d=28mm\r\nType of base and flange B3 | With base\r\nDimensions 340x230x300 mm\r\nOutput shaft diameter 28mm\r\nOutput shaft length 60mm\r\nKey shaft connection 8mm\r\nRated speed 1400RPM\r\nNo load speed 1500RPM\r\nNumber 4 pole pole (1400 revolutions)\r\nRated torque 11.63N.m\r\nMaximum torque about 2 to 2.2 times the rated torque\r\nMotor current rated current 17.8 amps\r\nCast iron shell material\r\nCOS power factor Fi 0.76 \r\nEfficiency 74%\r\nEnvironmental conditions, working temperature from minus 15 to plus 40 degrees Celsius | IP55\r\nShipping time 1 working day\r\nWarranty 12 months warranty

Pak Bad Engineering Company is a manufacturer of water traps, micro filters, ODD dryers equipped with heaters, sensors and periodic purges, normal auto drains and sensors. Also, this company is the innovator of exclusive air-cleaning dryers and fully automatic auto drains equipped with moisture detection sensors. Pak Bad Engineering Company is the inventor of the exclusive Pak Bad Saz dryer. By installing blowers after the compressor, it is possible to increase the efficiency and durability of the water trap, microfilter and dryers, and prevent the creation of moisture, especially at the end of the compressed air lines.

The fruit drying machine of Isfahan Hirad Machine Company can be considered as an example of the best dryers manufactured in the country.\r\n\r\nIndustrial capacities of 100 kg, 200 kg, 400, 600 kg and 800 kg cabin\r\n\r\nThe quality of the output product of these devices, without the need to use all kinds of syrups, acids, and preservatives in terms of aroma, color, and taste, is one of the determining factors in proving its superiority.\r\n\r\nOne of the most widely used, cheapest and best methods for drying all kinds of fruits and vegetables, saffron, garlic and shallots, onions, elderberries, grain sprouts, jujubes, mushrooms, okra, ganoderma, lavash, meat and shrimp, herbal medicines, Curd, oak, etc., is the use of devices that work with hot air circulation.\r\n\r\nIn this system, without the need for a fan, the hot air controlled from the side of the oven by a powerful centrifuge passes horizontally through the contents of all the trays, and then it is directed out of the device along with the moisture taken from the fruits. to be\r\n\r\nThe source of heat production in the dryers of Hirad Machine Company is the result of burning gas, diesel or electricity, which is designed and manufactured according to the customer\'s request. Due to the fact that the wall of the device instead of being made of iron (ordinary steel) is made of two-sided galvanized (both sides, both sides), it has a layer of industrial thermal insulation (condensed rock wool) with a thickness of 7 cm. The three-centimeter space of the walls prevents the loss of heat and time and the increase of fuel. It has great heating. The three-centimeter wall and 7-centimeter insulation inside it significantly reduces heat loss, and as a result, fuel consumption is greatly reduced and the work environment is prevented from heating up.

The fruit drying machine of Isfahan Hirad Machine Company can be considered as an example of the best dryers manufactured in the country.\r\nThe quality of the output product of these devices, without the need to use all kinds of syrups, acids, and preservatives in terms of aroma, color, and taste, is one of the determining factors in proving its superiority.\r\nOne of the most widely used, cheapest and best methods for drying all kinds of fruits and vegetables, saffron, garlic and shallots, onions, elderberries, grain sprouts, jujubes, mushrooms, okra, ganoderma, lavash, meat and shrimp, herbal medicines, Curd, oak, etc., is the use of devices that work with hot air circulation.\r\nIn this system, without the need for a fan, the hot air controlled from the side of the oven by a powerful centrifuge passes horizontally through the contents of all the trays, and then it is directed out of the device along with the moisture taken from the fruits. to be\r\nThe source of heat production in the dryers of Hirad Machine Company is the result of burning gas, diesel or electricity, which is designed and manufactured according to the customer\'s request. Due to the fact that the wall of the device instead of being made of iron (ordinary steel) is made of two-sided galvanized (both sides, both sides), it has a layer of industrial thermal insulation (condensed rock wool) with a thickness of 7 cm. The three-centimeter space of the walls prevents the loss of heat and time and the increase of fuel. It has great heating. The three-centimeter wall and 7-centimeter insulation inside it significantly reduces heat loss, and as a result, fuel consumption is greatly reduced and the work environment is prevented from heating up.

The fruit drying machine of Isfahan Hirad Machine Company can be considered as an example of the best dryers manufactured in the country.\r\nThe quality of the output product of these devices, without the need to use all kinds of syrups, acids, and preservatives in terms of aroma, color, and taste, is one of the determining factors in proving its superiority.\r\nOne of the most widely used, cheapest and best methods for drying all kinds of fruits and vegetables, saffron, garlic and shallots, onions, elderberries, grain sprouts, jujubes, mushrooms, okra, ganoderma, lavash, meat and shrimp, herbal medicines, Curd, oak, etc., is the use of devices that work with hot air circulation.\r\nIn this system, without the need for a fan, the hot air controlled from the side of the oven by a powerful centrifuge passes horizontally through the contents of all the trays, and then it is directed out of the device along with the moisture taken from the fruits. to be\r\nThe source of heat production in the dryers of Hirad Machine Company is the result of burning gas, diesel or electricity, which is designed and manufactured according to the customer\'s request. Due to the fact that the wall of the device instead of being made of iron (ordinary steel) is made of two-sided galvanized (both sides, both sides), it has a layer of industrial thermal insulation (condensed rock wool) with a thickness of 7 cm. The three-centimeter space of the walls prevents the loss of heat and time and the increase of fuel. It has great heating. The three-centimeter wall and 7-centimeter insulation inside it significantly reduces heat loss, and as a result, fuel consumption is greatly reduced and the work environment is prevented from heating up.

Hirad cabinet dryers with the ability of a sitcooler system\r\nIt allows that\r\n1- The output of the product should be a natural and constant color\r\n2_ The drying time of the product is shorter\r\n3- In this system, compared to the design of the air circulation with the fan, the fuel consumption is greatly reduced\r\nIn the rest of the article, I will explain the reasons\r\nThe air circulation is done by the centrifuge, in such a way that fresh air (through the air inlet valve) and hot air (furnace) are sucked through the centrifuge and enter the air channel, here the hot air and fresh and cool air are uniform inside the channel. and when it enters the dryer cabin, a warm and uniform air is produced and enters the cabin with strength\r\nInside the cabin, the vents (for the entry of hot air) are located in front of the baskets, and hot and high-pressure air enters the device linearly and in a circular mode.\r\nSo far, I have explained how the system of the Hirad car dryer is done\r\nBut what is the good of this?\r\nThis system helps the moisture of the product to leave the cabin without interruption and easily, and the color of the product remains natural\r\nBecause there is warm and uniform air inside the cabin, the cabin reaches the desired temperature in a short period of time\r\nThe temperature adjustment system of the dryer turns off the burner and reduces fuel consumption, and because the cabin heats up easily and the moisture is easily removed, these things help to shorten the drying time of the product.\r\nAnd this is in contrast to the heating system with a fan, where hot air enters the cabin in an irregular and scattered manner, which causes the moisture of the product to be placed inside the diffuser and on the product again, and this causes the product to darken and also not dry evenly.

Manufacturer of a full line of stone crusher, batching, sand, feeder, jaw, cubit, hydrocon, sand maker, dryer, salt sand, conveyor, and supply of spare parts.
