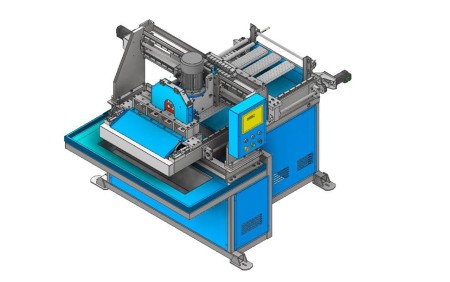

This machine is designed and built to cut iron pipes in the form of 6-meter branches at the same time. The loading of the pipes is done by the operator at the beginning of the work on the device. After loading, the pipes are first cut and then cut according to the size and number selected in the display. The machine is equipped with four hydraulic clamps that hold the pipes well during cutting and prevent the pipe from rotating during cutting. Due to holding both sides of the pipe during cutting, pleats are not created at the cutting site. The device is equipped with a 7-inch Delta model display, which makes the relevant settings. The three-horsepower, three-phase motor with the gearbox provides an output speed of 90 rpm for cutting. The device is equipped with a display and the function of determining the length and number of cuts is provided. The front axles of the pipe cutter and the pipe cutter are equipped with two servo motors. This machine can cut 36 pipes with a diameter of 9 mm in each clamp jaw.
There are no comments for this product
| Company | ماشینهای تخصصی آوین |
|---|---|
| Tel | +98 21-4×××0052, +98 21-4×××0054 |
| Mobile | +98 912×××8004 |
| Whatsapp link | |
| Instagram page | |
| Telegram | Telegram link |
| Website | https://avinmachine.com/ |
| Country | Iran |
| Province | Tehran |
| Address | تهران- اتوبان تهران کرج- خروجی شهرک سروآزاد-کوچه سوم غربی-مجتمع پیکانشهر |
