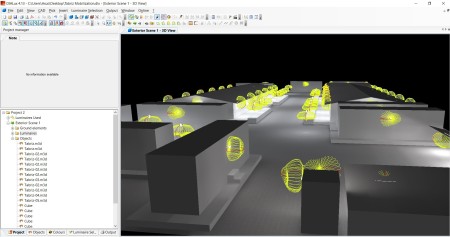

Dialux software introduction:
One of the free and popular software in the field of lighting engineering design and lighting of construction projects is Dialux software. This software is available in 25 different languages. And it has more than 700 thousand uses. The main factor of using Dialux software in design is to match the result for lighting every place with global standards. The use of this software is also very common in the country. Because it is possible for the lighting equipment manufacturing companies to put the technical information of their products as a plug-in in Dialux software and present it to the user. Dialux software users in the country have the possibility to use the lighting equipment of famous companies such as Pars Shahab and Ecowatt in their modeling and simulations because these companies have their own plugins in this software.
Dialux software features:
• The ability to illuminate spaces such as: the interior of the building, the exterior, passages, green spaces, etc.
• Having a powerful library of elements such as: brick walls, glass, doors and windows, home appliances, etc. in itself.
• More natural display of user modeling.
• Ability to import and export AutoCAD files with DWG extension and 3DMAX files.
• The possibility of 2D and 3D simulation of the project and its components before implementation.
• Calculation of the required lighting of the environment by entering parameters such as: dimensions, color and available light sources.
• The ability to determine the best place to place lamps, their number and power for the user using this software.

Lighting design for different places

Different methods are used in the lighting design of various places, including industrial, office, residential, grounds, stadium, etc., all of which are implemented by Dialux software.

In lighting design, there are important parameters that every lighting designer should pay attention to. These parameters are:

light intensity

The amount of light emitted from a light source at a certain spatial angle is called light intensity. To better understand this issue, consider two lamps with equal luminous flux, where the radiation angle of the first lamp is 120 degrees and the second lamp is 60 degrees. According to the above definition, the second lamp with a lower beam angle will have a higher light intensity. (The amount of light is different from the intensity of the light.) Which, of course, will result in the lamp having less light distribution due to the lower radiation angle. The unit of light intensity is candela or candela and it is displayed with cd.

The intensity of lighting is different for places with different users, so you can use the link below to get more detailed information about the intensity of lighting for each place.

The amount of light intensity for different places

optical flux

The amount of light that is emitted from the light source in all directions is called brightness, and the unit of measurement for the amount of light flux is Lumen.

Brightness

to the amount of light flux that b
