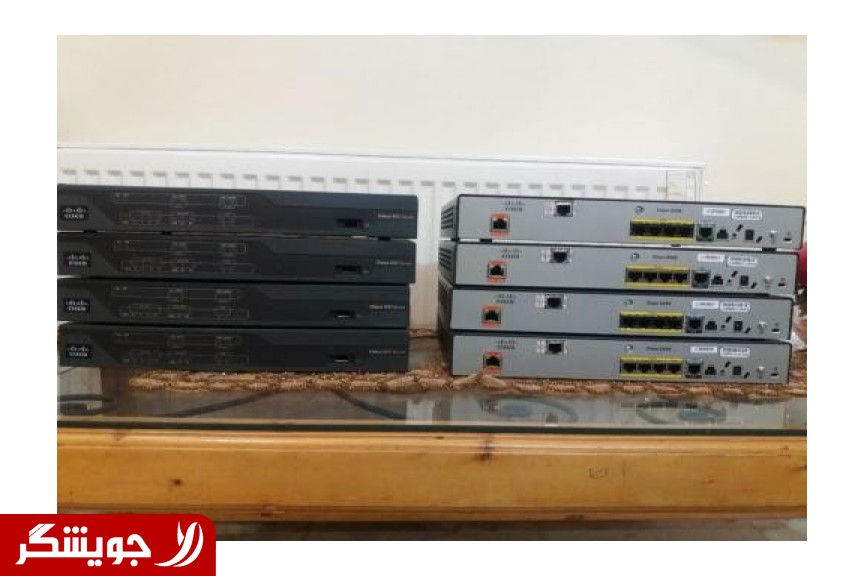

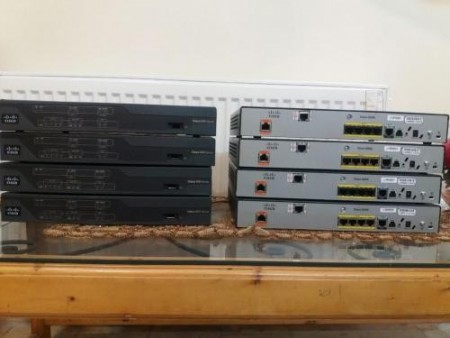

Router Cisco888E-K9 from routers series 800, Cisco is a protocol EFM support is appreciated.The letter E in پارت نامبر router, stands for the EFM industry.Router other سری800 that both EFM and ATM support appreciated router Cisco888EA-K9 is that its price is almost double router Cisco888E-K9. روتر a dot 888E has four LAN ports, which is two of the ports it has POE. This router is able to support from four pairs ( eight wires ) as the UP link is able to pass traffic up to 17Mbps on the up now. بدلیل support فیچرهای layer, such as QOS, etc. Routing and to special types of Tunneling, the best option to set up service MPLS. از since these routers terms Cisco EOL, respectively. ( NIB (New In Box this router available in the market, not and finally, be the kind of Refurbished it buy. با regard to the credit of the brand of Cisco in the field of network products, some of the clients, the router, Refurbished Cisco, to مودمهای a dot Taiwanese prefer.
رنگبندی wires is as below :
couple of the first : Blue, Blue, White couple II : Orange / Orange, White couple the third : green and green, white couple the fourth : the brown and brown white
کانفیگ router Cisco888E :
یک device router Cisco888E with a router as a Back To Back was closed, and in mode four couples amount 17152Kbps between the two devices exchanged was .
sh run
Building configuration...
Current configuration : 2364 bytes
!
! Last configuration change at 12:46:32 UTC Thu Dec 6 2018
! NVRAM config last updated at 12:38:20 UTC Thu Dec 6 2018
! NVRAM config last updated at 12:38:20 UTC Thu Dec 6 2018
version 15.1
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Test
!
boot-start-marker
boot-end-marker
!
enable secret 4 ON4/JEpngaMCgaCC2VjD1qBo5mSSJUWDMN4I32ndv.M
!
no aaa new-model
memory-size iomem 10
crypto pki token default removal timeout 0
!
ip source-route
!
no spanning-tree vlan 2
vtp mode transparent
!
controller SHDSL 0
dsl-group pairs 0
shdsl annex A-B-F-G
!
vlan 2
name DATA
!
bridge irb
!
interface Ethernet0
descirption LINK-TO-EFM
no ip address
bridge-group 1
!
interface BRI0
no ip address
encapsulation hdlc
shutdown
isdn termination multidrop
!
interface FastEthernet0
switchport access vlan 2
no ip address
!
interface FastEthernet1
switchport access vlan 2
no ip address
!
interface FastEthernet2
switchport access vlan 2
no ip address
!
interface FastEthernet3
switchport access vlan 2
no ip address
!
interface Vlan1
no ip address
!
interface Vlan2
ip address 10.175.X.X 255.255.255.248
interface Async1
no ip address
encapsulation slip
shutdown
!
interface BVI1
ip address 192.168.1.1 255.255.255.252
ip forward-protocol nd
no ip http server
no ip http secure-server
!
ip route 0.0.0.0 0.0.0.0 192.168.1.2
!
bridge 1 protocol ieee
bridge 1 route ip
!
line con 0
line aux
